Parameters of Layout Check while Designing a PCB : 2 [ Grid System]

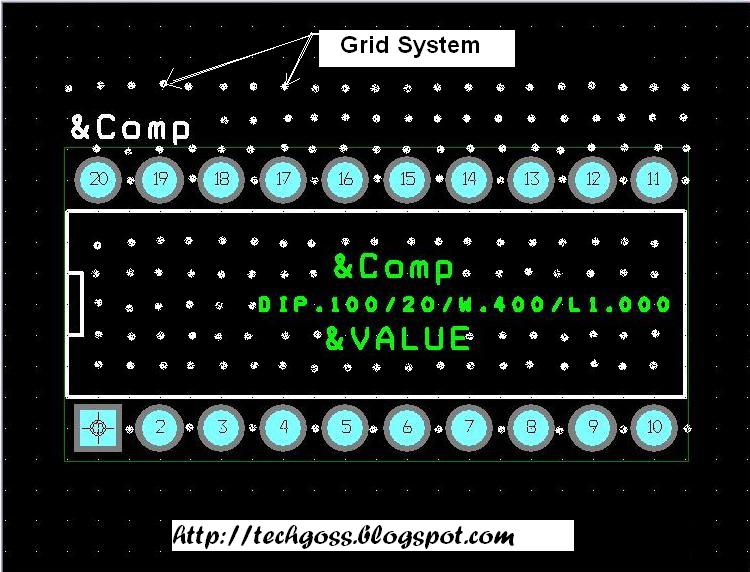

Grid system is basically required to get an accuracy while drawing the hole location of a component. The use of grid gives more convenience in placement of components and conductors on the PCB. It is a general practice to use grid system in layout designing.

By using the grid system in the artwork preparation stage the pads can be placed at exactly the center of the grid intersection. In the modern times the grid system is present in your PCB designing software itself. Using a grid of 100mil is adequate. But if you wanna shrink your PCB then grid of 50mil is also acceptable.

As the design becomes more and more complex finer and finer grids are required. Universal  grid system is based on the 0.05mm unit. For all shape and sizes and for every aspect of the PCB layout grid size should be incremented as the multiple of  5; else routing will be quite difficult.

Want to know more about grid system PCB design org >>

Guide To Conquer Electronics [Resistors]

Resistors are the simplest components of electronics. There's nothing great that you may find difficult to understand. Moreover there are tons of sites on the net that are loaded with the of concept of resistors. But one thing which  I have found similar in all these sites are; they discuss about what the resistors actually are and how we can determine the color codes. But none of them discuss about the different types of resistors and which type of resistor should be used where.

So I decided to come up with a Guide to Conquer Electronics with an idea to explore the applications of different components of electronics and their types.

While designing a circuit it is very important to maintain proper current and voltage level across different components for proper operation of the circuit. If excess of current is flowing then it can be brought down using resistors. Resistors are available in different ohm ratings and different wattage.

The guide covers all this subjects with a pictorial representation. Pictures will help you for the better identification of the component, its package type, and space required on the PCB.  I hope the Guide to Conquer Electronics will be advantageous  for you in better circuit designing.
If you are unable to understand the concepts of electronics like JFETs, voltage regulators, Ac modeling then we have electronic movies a fully animated program in store for you. Visit EMovies >>


Wednesday, April 21, 2010

Evoulation of Radio Astronomy: The Complete Story.

The age of radio astronomy began from the day when engineers learned to generate radio waves using an electron tube. Approximately after a decade from the discovery two young and dynamic engineers Gregory Breit and Merle Tuve, bounced radio waves off the ionosphere and determined the height of the layers. This proved that radio waves can travel beyond earth and back and they can be used as a probe for communication.

Two years later a well known American inventor, writer, and magazine publisher Hugo Gernsback popularly known as father of science friction proposed an article "Can We Radio The Planets". The radio waves that can be bounced from the moon and the planets. He also stated that 2.5sec will be required for a radio wave to travel to the moon and back.

In the years of 1930 Karl Guthe Jansky at Bell Telephone Laboratories investigated the noise sources in radio transmission. Jansky used a large directional antenna of 14.6m wavelength which identified three different types of static noise. Noise signal from local thunderstorms, a steadier (ie; firm in position) and weaker static from distant thunderstorm and a weak hiss from unknown source.

The weak signal from the unknown origin peaked about every 24 hours. Firstly Jansky suspected that this unknown source was sun crossing the view of his directional antenna, but when Jansky compared his observations with the optical astronomical maps, he concluded that the radiation was coming from the Milky Way and it was maximum in the direction of center of galaxy.

But instead of encouraging the research of Jansky; Bell's laboratory rejected Jansky's request to build a 100 foot radio telescope. No other institution followed Jansky's work.

Only after World War II a radio engineer Grote Reber took Jansky's work and continued it as a hobby in his spare time. He built a 31-foot parabolic antenna and in 1937 made the first radio map of the sky. With the intense development of radar technology during the world War II gave a new aid to astronomers.

A team headed by J.H. De Witt of U.S. Army Signal Corps were succeeded in seeing the echoes of the moon on the cathode ray tube .
From then there was no turning back and in the years of 1940-50 radio astronomy emerged as a new branch of astronomy. A 76m steerable radio telescope was built in England at Jodrell bank in 1957.

While a 305 meter fixed reflector was completed in Arecibo Puerto Rico in 1963. It is the world's largest radio telescope made till date.


Saturday, April 17, 2010

Parameters of Layout Check while Designing a PCB : 1 [ Layout Scale ]

The layout of a PCB has to incorporate all the information on the board before one can go on to the artwork preparation. Layout check is a concept which clearly defines all the details of the circuit & partly also of final equipment. It is a prerequisite before the actual layout can start.
For a design engineer the parameters to be considered for planning the layout of a circuit includes layout scale, grid system, board types, circuit diagram, component list, layout sketch, artwork preparation, component mounting, layout check, resistance, inductance, and capacitance. Let us see how we can implement this parameters effectively while designing a PCB layout. A series of post will cover every single topic mentioned above.

< Layout scale >
Depending on the accuracy required, artwork should be produced at a 1:1 or 2:1 or even 4:1 scale. The layout is best when prepared on the same scale as artwork.

If you didn't understand what this means, then consider an example. Suppose your desktop wallpaper's resolution is  1024 x 768. And let us say this resolution signifies a normal ie; 1:1 scale for your desktop. But at the same time you can also zoom the wallpaper to say 1600 x 1200 representing a 2:1 scale. Thus this scale represents nothing but a zoomed version of your artwork.

layout scale

A 2:1 artwork has 4x actual PCB area and a 4:1 artwork has 16x the PCB area. Normally a 1:1 scale is considered while transferring the artwork on the PCB.


Sunday, April 11, 2010

Optimum Package Density of PCB.

Components Package Density

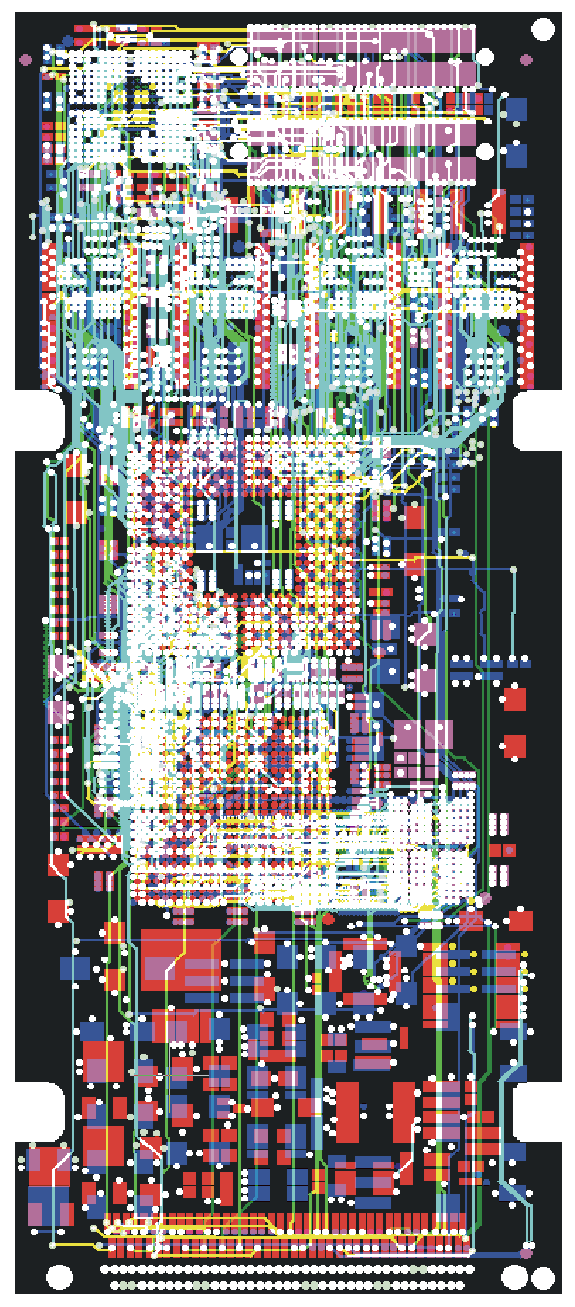

An optimum package density of a printed circuit board results into better electronics performance at a reduced cost and gives the impression of an optimum design. The package density is linked with many constraints.
